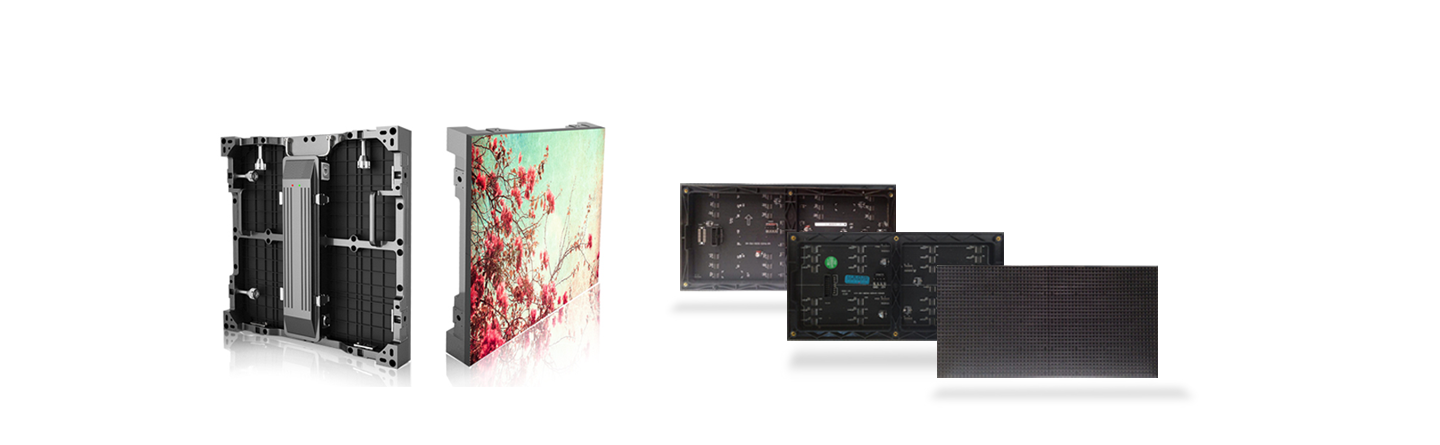

Products »Indoor SMD Module

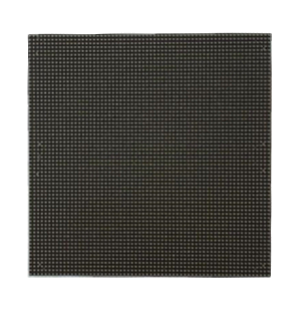

Module P3-SMD Indoor/Hub 75

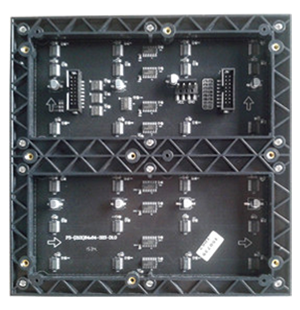

Back view
|
Pixel Pitch |
3mm |
viewing angle |
180 degree |
|
Pixels Compression (Density ) |
111000pixels/sq.m |
The best sight distance |
1m ~ >150m> |
|
Pixel type |
SMD 3in1 |
module size |
192*192 mm |
|
LED type |
SMD 2020 |
Module resolution |
64*64 |
|
LED specification |
R: λd(625-630nm) G: λd(520-525nm) B: λd(465-470nm) |
IP model |
IP20 |
|
Power consumption |
300W/㎡ |
Control type |
Advanced LED Video Processor |
|
Driver type |
1/16 Scan |
Power Supply |
DC 5V |
|
Light intensity |
1800cd/㎡ |
module lifetime |
≥100,000 hours |

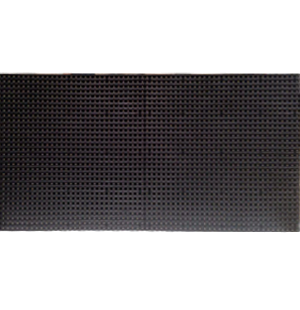

Module P4-SMD Indoor/Hub 75

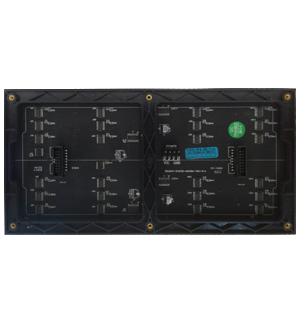

Back view
|
Pixel Pitch |
4mm |
viewing angle |
180 degree |
|
Pixels Compression (Density ) |
62500pixels/sq.m |
The best sight distance |
1m ~ >150m> |
|
Pixel type |
SMD 3in1 |
module size |
256*128 mm |
|
LED type |
SMD 2020 |
Module resolution |
32*64 |
|
LED specification |
(R: λd(625-630nm G: λd(520-525nm) B: λd(465-470nm |
IP model |
IP20 |
|
Power consumption |
280W/㎡ |
Control type |
Advanced LED Video Processor |
|
Driver type |
1/16 Scan |
Power Supply |
DC 5V |
|
Light intensity |
1800cd/㎡ |
module lifetime |
≥100,000 hours |

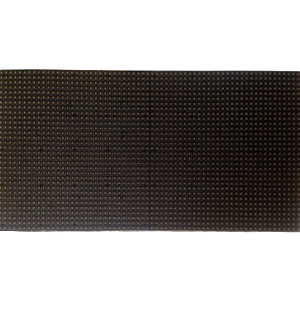

Module P5-SMD Indoor/Hub 75

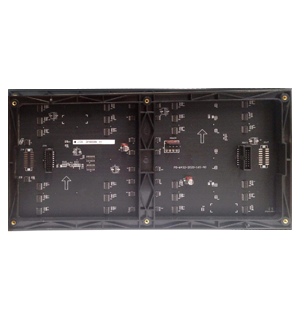

Back view
|
Pixel Pitch |
5mm |
viewing angle |
180 degree |
|
Pixels Compression (Density ) |
40000pixels/sq.m |
The best sight distance |
3m ~ >150m> |
|
Pixel type |
SMD 3in1 |
module size |
320*160 mm |
|
LED type |
SMD 3528 |
Module resolution |
32*64 |
|
LED specification |
(R: λd(625-630nm G: λd(520-525nm) B: λd(465-470nm) |
IP model |
IP20 |
|
Power consumption |
260W/㎡ |
Control type |
Advanced LED Video Processor |
|
Driver type |
1/16 Scan |
Power Supply |
DC 5V |
|
Light intensity |
1800cd/㎡ |
module lifetime |
≥100,000 hours |
