Controller

Controllers HD
Controllers Nova star
Controllers LINSN

The main advantage of this controller in addition to its low base price being as affordable, sustainable and efficient software and hardware and so simplified as the end user, without any specialized knowledge in the field of LED display, is able to design and replace easily the plan of the display

Another advantage of this controller, tailored to customer requirements having huge varieties and different types including single color, full color, online

and offline (Synchronous / Asynchronous) while all the models have been mentioned as follows

Single color HD Controllers

These controllers are equipped with Hub12 output in addition to Hub08 and applied for single color systems as well as for displays three and seven colors if the controllers to be updated by HD program

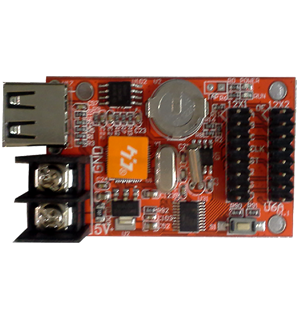

HD-U6A Controller

Type LED Modual	dual color halved,support seven color
Type and Number Of Hubs	2xhub 12
The maximum pixel Single color	32*320
Internal memory	1.5M byte
Communication port	U DISK
software	HD2016

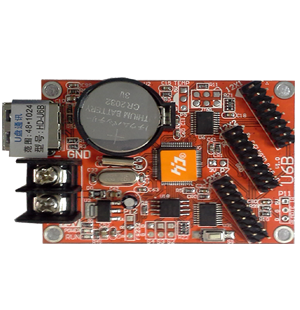

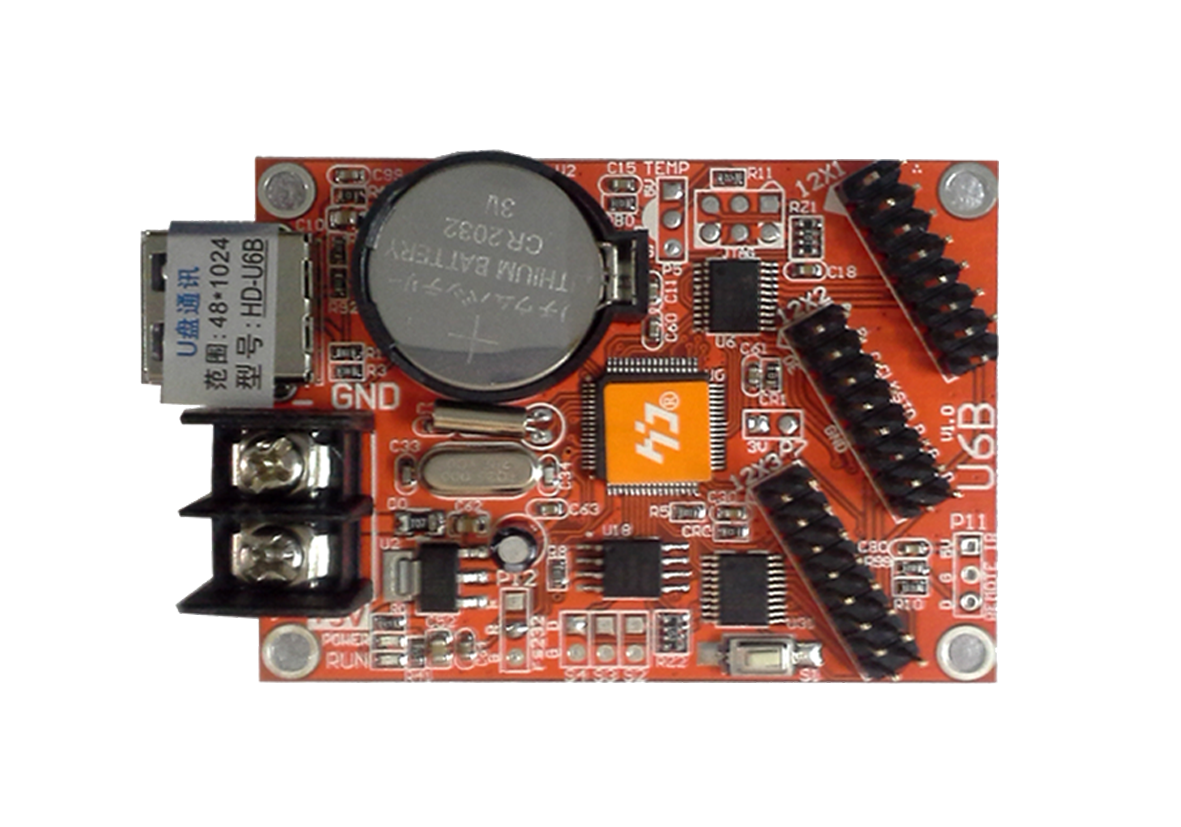

HD-U6B(A40K )Controller

Type LED Modual	dual color halved,support seven color
Type and Number Of Hubs	3xhub 12
The maximum pixel Single color	48*1024
Internal memory	8M byte
Communication port	U DISK
software	HD2016

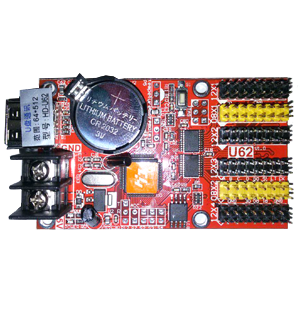

HD-U62(Q40)Controller

Type LED Modual	dual color halved,support seven color
Type and Number Of Hubs	2xhub 08 and 4xhub 12
The maximum pixel Single color	64*512
Internal memory	8M byte
Communication port	U DISK
software	HD2016

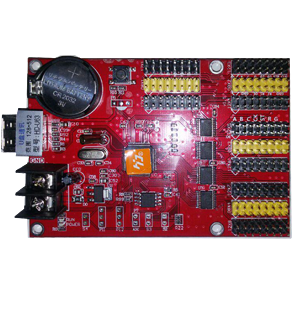

HD-U63(U40) Controller

Type LED Modual	dual color halved,support seven color
Type and Number Of Hubs	4xhub 08 and 8xhub 12
The maximum pixel Single color	128*512
Internal memory	8M byte
Communication port	U DISK
software	HD2016

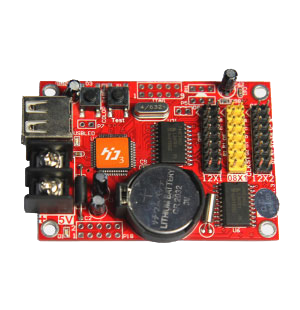

HD-A40 Controller

Type LED Modual	Single-color, Dual-color
Type and Number Of Hubs	1xhub 08 , 2xhub 12
The maximum pixel Single color	32*768
Maximum tri-color pixels	32*384
Internal memory	8M byte
Communication port	USB Interface
software	HD2014
Image Format	Support: jpg, png, bmp
Animation format	Support : GIF , SWF
text format	Support: txt, rtf

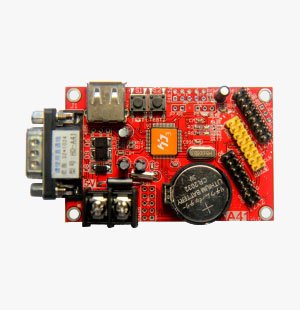

HD-A41 Controller

Type LED Modual	Single-color, Dual-color
Type and Number Of Hubs	1xhub 08 ,2xhub 12
The maximum pixel Single color	32*1024
Maximum tri-color pixels	32*512
Internal memory	8M byte
Communication port	USB interface,RS232
software	HD2014
Image Format	Support: jpg, png, bmp
Animation format	Support : GIF , SWF
text format	Support: txt, rtf

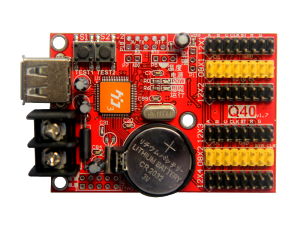

HD-Q40 Controller

Type LED Modual	Single color and Dual color
Type and Number Of Hubs	2xhub 08 ,4xhub 12
The maximum pixel Single color	1024x64 ( hub 12 ) / 512x32( hub 08 ) 1color
Maximum tri-color pixels	512x64 ( hub 12 ) / 256x32( hub 08 ) 3color
Internal memory	8M byte
Communication port	USB interface
software	HD2014
Image Format	Support: jpg, png, bmp
Animation format	Support : GIF , SWF
text format	Support: txt, rtf

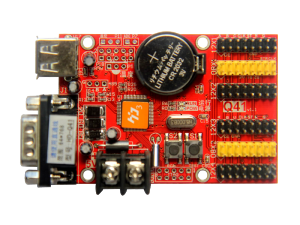

HD-Q41 Controller

Type LED Modual	Single-color, Dual-color,Tri-Color
Type and Number Of Hubs	2xhub 08 , 4xhub 12
The maximum pixel Single color	1536x64 ( hub 12 ) / 768x32 ( hub 08 ) 1color
Maximum tri-color pixels	768x64 ( hub 12 ) / 384x32 ( hub 08 ) 3color
Maximum seven-color pixels	768x64 ( hub 12 ) / 384x32 ( hub 08 ) 7color
Internal memory	8M byte
Communication port	USB interface, RS232
software	HD2014
Image Format	Support: jpg, png, bmp
Animation format	Support : GIF , SWF
text format	Support: txt, rtf

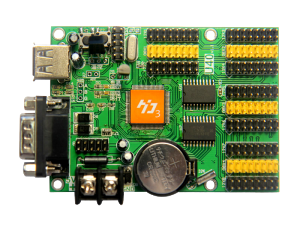

HD-U40 Controller

Type LED Modual	Single-Color, Dual-Color, Tri-Color
Type and Number Of Hubs	4xhub 08 and 8xhub 12
The maximum pixel Single color	1280x128 ( hub 12 ) / 640x64 ( hub 08 ) 1color
Maximum tri-color pixels	640x128 ( hub 12 ) / 320x64 ( hub 08 ) 3color
Maximum seven-color pixels	832x64 ( hub 12 ) / 416x32 ( hub 08 ) 3color
Internal memory	8M byte
Communication port	USB interface
software	HD2014
Image Format	Support: jpg, png, bmp
Animation format	Support : GIF , SWF
text format	Support: txt, rtf

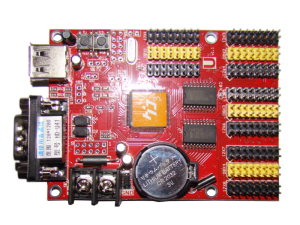

HD-U41 Controller

Type LED Modual	Single-Color, Dual-Color, Tri-Color
Type and Number Of Hubs	4xhub 08 and 8xhub 12
The maximum pixel Single color	2048x128 ( hub 12 ) / 1280x64 ( hub 08 ) 1color
Maximum tri-color pixels	1280x128 ( hub 12 ) / 640x64 ( hub 08 ) 3color
Maximum seven-color pixels	1696x64 ( hub 12 ) / 848x32 ( hub 08 ) 7color
Internal memory	8M byte
Communication port	USB interface, RS232
software	HD2014
Image Format	Support: jpg, png, bmp
Animation format	Support : GIF , SWF
text format	Support: txt, rtf

Full Color HD Controllers

Although the quality and efficiency of these controllers shall not be competitive in compare to more powerful controllers such as Nova star M20,M31 but because of the base price can be an appropriate option

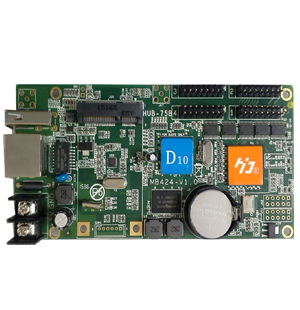

HD-D10 Controller

HD-C1 controller	indoor & out door & semi-out door full color module
The maximum pixel full-color	64*384
Gray Level	0-256
Internal and external memory	256MB + USB
Communication port	U DISK , LAN , Network interface
software	HD Player
Image Formats	...Support:BMP,JPG,JPEG,PNG
Animation format	...SWF,FLV,GIF,AVI,WMV,MP4
Text format	...Support: txt, rtf , html

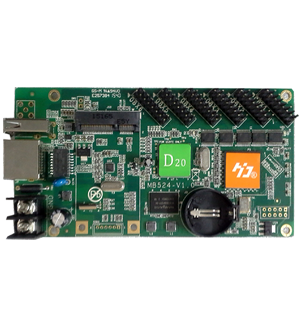

HD-D20 Controller

HD-C1 controller	indoor & out door & semi-out door full color module
The maximum pixel full-color	64*384
Gray Level	0-256
Internal and external memory	256MB + USB
Communication port	U DISK , LAN , Network interface
software	HD Player
Image Formats	...Support:BMP,JPG,JPEG,PNG
Animation format	...SWF,FLV,GIF,AVI,WMV,MP4
Text format	...Support: txt, rtf , html

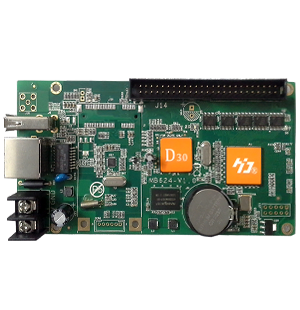

HD-D30 Controller

HD-C1 controller	indoor & out door & semi-out door full color module
The maximum pixel full-color	64*1024
Gray Level	0-256
Internal and external memory	256MB + USB
Communication port	U DISK , LAN , Network interface
software	HD Player
Image Formats	...Support:BMP,JPG,JPEG,PNG
Animation format	...SWF,FLV,GIF,AVI,WMV,MP4
Text format	...Support: txt, rtf , html

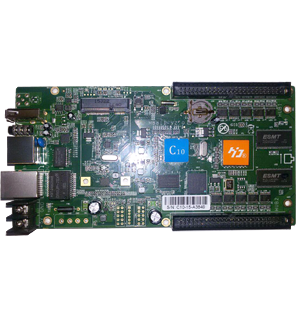

HD-C10 Controller

Audio Output	double track stereo audio out put
The maximum pixel full-color	256*384
Gray Level	0-65536
Internal and external memory	4GB + USB
Communication port	Through the network port to conect local area network, internal , 3G/4G
software	HD Player
Image Formats	...Support:BMP,JPG,JPEG,PNG
Animation format	...AVI, WMV, MP4, 3GP, MPG
Text format	...Support: txt, rtf,html

HD-C30 Controller

Audio Output	double track stereo audio out put
The maximum pixel full-color	480*640
Gray Level	0-65536
Internal and external memory	4GB + USB
Communication port	Through the network port to conect local area network, internal , 3G/4G
software	HD Player
Image Formats	...Support:BMP,JPG,JPEG,PNG
Animation format	...AVI, WMV, MP4, 3GP, MPG
Text format	...Support: txt, rtf , html

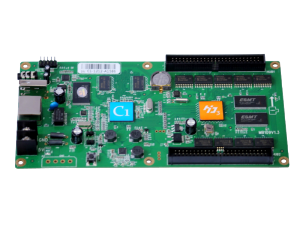

HD-C1 Controller

HD-C1 controller	Single Color, Dual Color, Full Color
Audio Output	Yes
The maximum pixel full-color	128*384
CPU/RAM	Cortex A8 / DDRII
Gray Level	0-65536
Internal and external memory	512MB + USB
Communication port	USB interface, LAN
software	LedArt
Image Formats	Support: jpg, png, bmp
Animation format	…,AVI,WMV,MP4,3GP,FLV,MPG,GIF , SWF
Text format	Support: txt, rtf

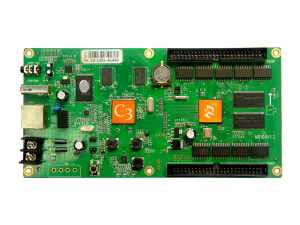

HD-C3 Controller

HD-C3 controller	Full Color, Dual Color, Single Color
Audio Output	Yes
The maximum pixel full-color	256*384
CPU/RAM	Cortex A8 / DDRII
Gray Level	0 – 65536
Internal and external memory	512MB + USB
Communication port	USB interface, LAN
software	LedArt
Image Formats	Support: jpg, png, bmp
Animation format	…,AVI,WMV,MP4,3GP,FLV,MPG,GIF , SWF
Text format	Support: txt, rtf

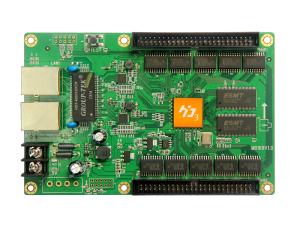

HD-R500 Controller

HD-R500 controller	Full Color, Dual Color, Single Color
The maximum pixel full-color	1024*728
Each card has a maximum pixel full color	256*128
CPU/RAM	Cortex A8 / DDRII
Gray Level	0 – 65536
Internal and external memory	512MB + USB
Communication port	LAN
software	HD3000
Image Formats	Support: jpg, png, bmp
Animation format	…,AVI,WMV,MP4,3GP,FLV,MPG,GIF , SWF
Text format	Support: txt, rtf, Excel, Word

Nova star Controller

Novastar is one of the most prominent companies in providing the most advanced LED display and urban display controllers. Nova Star Online Controller Production Line is based on simultaneous control technology and point-to-point LED. The company's prominent features include innovative display control technology, user-friendly products, industry-standard, and professional support solutions. Currently, Novastar Controller holds 50% of the market share worldwide.

The benefits of these controllers support the latest LED image processing technology, which greatly improves the quality of the images on the screen, and adjusts the size and contrast of image playback to better capture images. Also, gamma technology automatically improves gray color performance with brilliant screen brightness and displays brighter and livelier images.

LINSN Controller

Since these online controllers, assumed as the most strongest and famous controllers worldwide the prominent companies applied them in urban TV display systems. As an online controllers, they will be used like a monitor and the image on your computer monitor shall be transferred and shown promptly (Real Time) on the display. Hence, the controllers are suitable for usage in halls, sport complexes and conferences, then as soon as connecting to the cameras already mounted in place, will be highly efficient

The controllers support all modules including full & single /tricolor LED modules

Linsn controller card consists of two separate cards: transmitter cards (Sending cards) and receiver cards (Receiving Cards), which both of them required for starting the display while each transmitter card is capable of applying several receiving cards .the number of the receiving cards will be calculated and specified for huge TV monitors depending on the size and number of the monitor pixels

Linsn transmitter cards include two types: Internal (local) and External (foreign) cards. The Internal controls are located inside the PC case environment but External controls mounted out of pc space mostly used in tablets while for external controllers ,the conversion card as ADS must be used
